Description
TYPHON STOMP 502 PRO brings its major systems together as a complete working package: Honda GX690 V-Twin power, a three-pump hydraulic package, triangle rubber tracks and a 40.7 in overall width. It is aimed at landscaping, residential construction, property maintenance and material handling through narrow access points.
Performance is paired with practical operator features; dual joysticks and a stand-on platform provide direct control and visibility while supporting compatible hydraulic attachments.

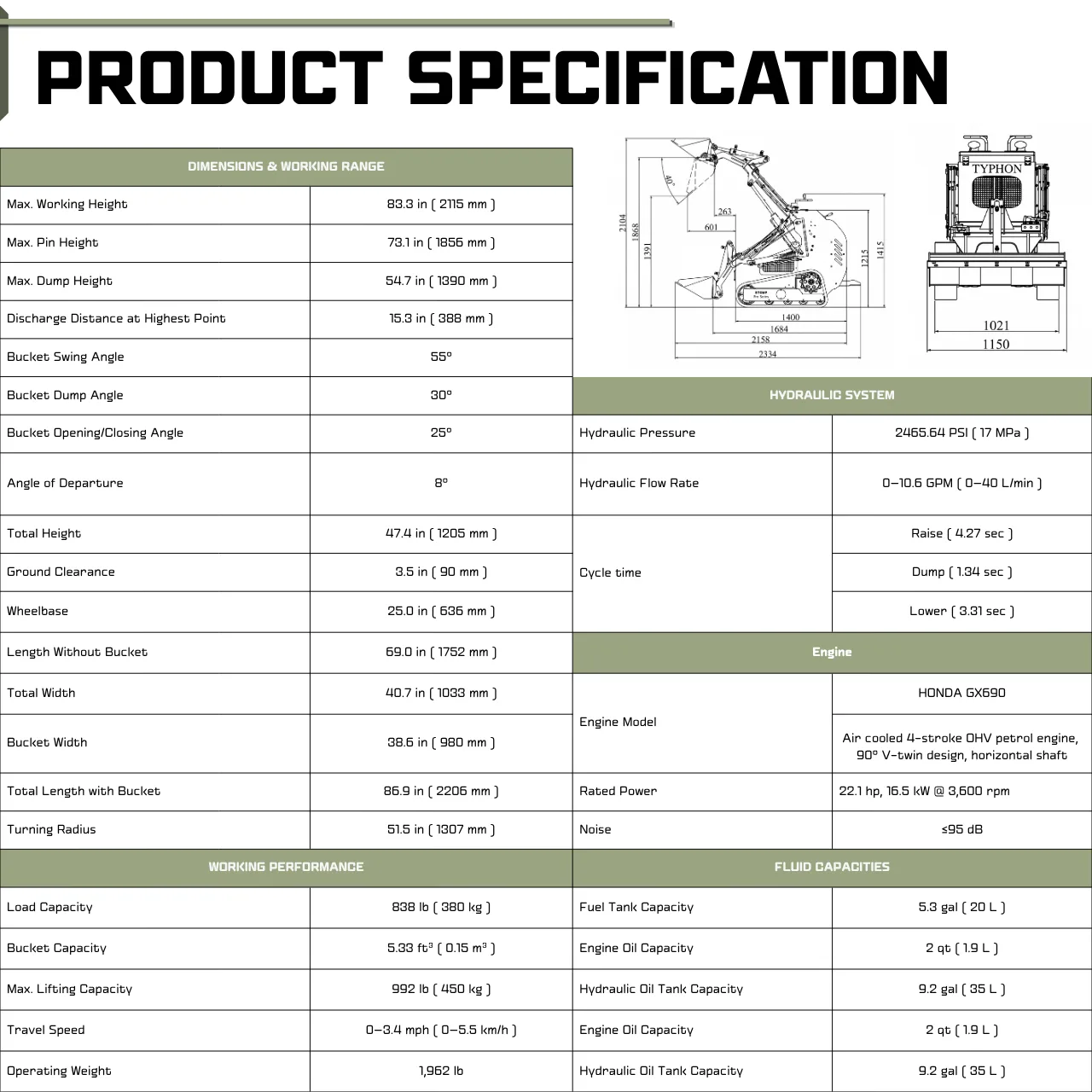

Complete Specifications

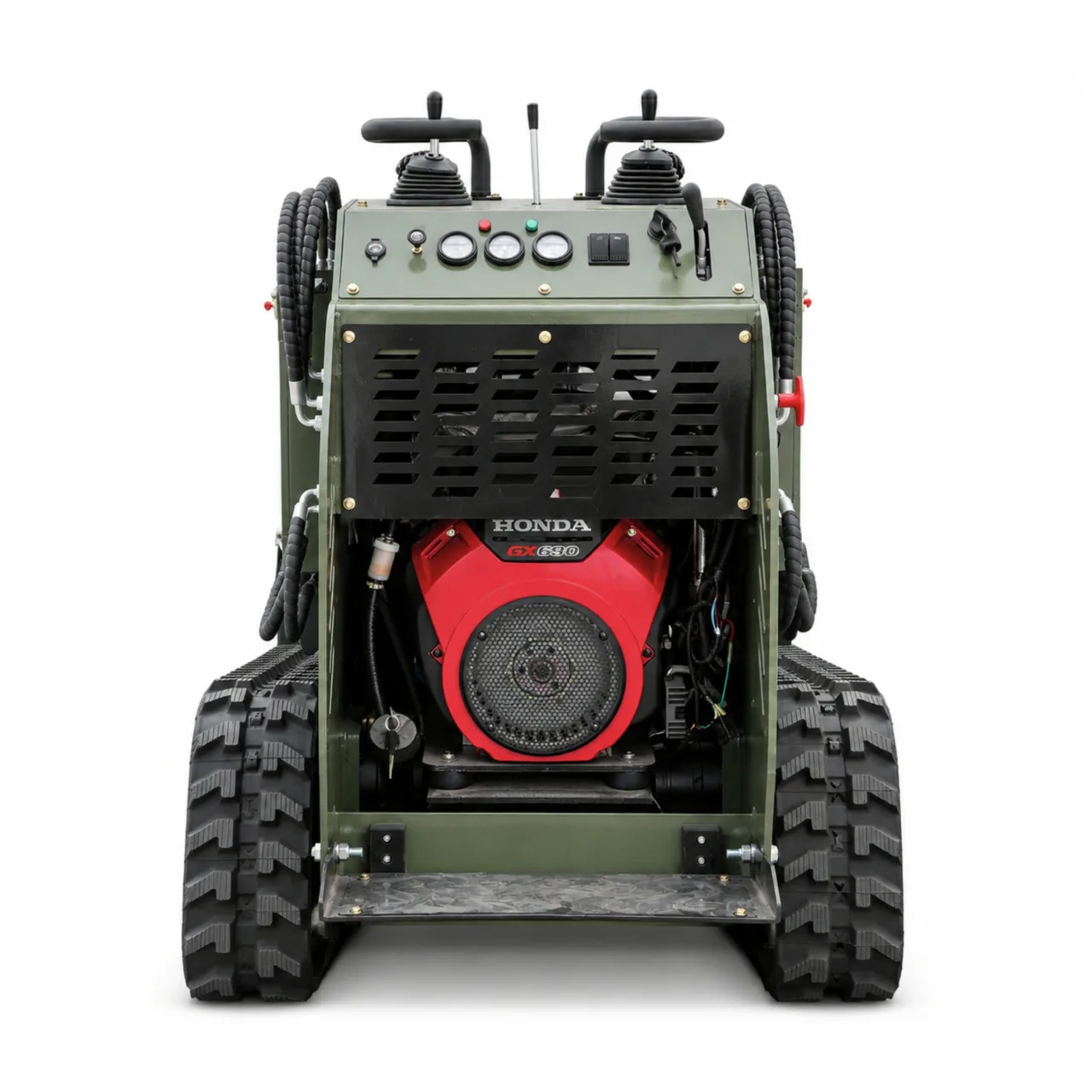

- Engine: a 22.1 HP Honda GX690 air-cooled V-Twin gasoline engine rated at 3,600 RPM
- Weight & capacity: 1,962 lb operating mass paired with an 838 lb working load and 992 lb maximum lifting force
- Attachment support: compatibility with hydraulic tools such as suitable trenchers, augers and grapples
- Operator setup: dual-joystick control from the stand-on platform, supported by a digital display and front LEDs
- Tank capacities: 5.33 gallons of fuel storage and a 9.2 gallon hydraulic reservoir
- Travel speed: travel speed up to 3.4 mph
- Track platform: rubber triangle tracks and full 360° pivot maneuverability
- Narrow-access size: 40.7 in machine width for moving through restricted entrances
- Lift geometry: 83.3 in maximum working height and 54.7 in dump height
- Bucket: a bucket volume of 5.33 cubic feet
- Hydraulic system: 10.6 GPM hydraulic output from a 3-pump / 3-valve package operating to 2,465.64 PSI
Practical Capability
The final result is a professional machine focused on useful output, controlled operation and everyday jobsite practicality. Its combination of Honda GX690 V-Twin power, a three-pump hydraulic package, triangle rubber tracks and a 40.7 in overall width is matched to landscaping, residential construction, property maintenance and material handling through narrow access points, while dual joysticks and a stand-on platform provide direct control and visibility while supporting compatible hydraulic attachments.
