Description
Unleash the compact power of the TYPHON STOMP X1300 Mini Skid Steer Loader, a multi-purpose and consistent solution for small building projects. Purpose-engineered for easy maneuverability across restricted job sites, this 3040lbs skid steer loader is created to handle various tasks with operating performance. From digging and drilling to bull-dozing and landscaping, the TYPHON STOMP X1300 produces exceptional performance in a compact economical package.
Explore the robust and effective TYPHON STOMP X1300 compact skid steer loader with advanced hydraulic systems and high-end Kubota D1105 engine for optimized performance.

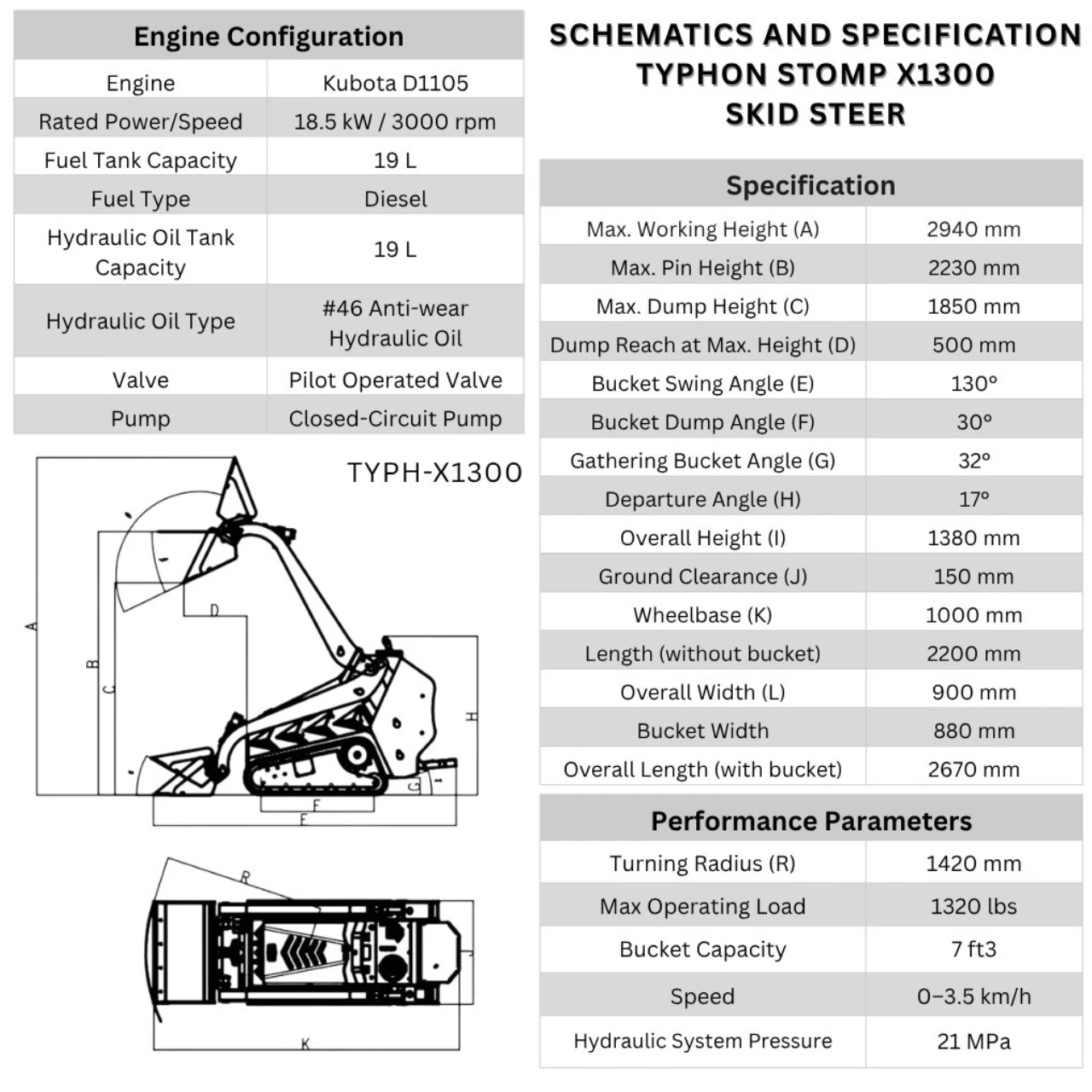

The TYPHON STOMP X1300 is engineered as a streamlined mini loader designed with ingenuity and robust functionality, showcasing a body width of only 35.4 in for agility in narrow spaces. Its boom brings a Vertical Lift design, with high pin height 7.72 ft, enabling loading onto high-sided trucks.
TYPHON STOMP Mini Skid Steer Loader Key Includes
1. Compact Design for Small Projects
- Specifically engineered to serve small building projects, supporting easy manoeuvrability.
- A robust choice built to support farms, gardens, public spaces, parks, orchards, and more.
2. Multi-purpose Applications
- A practical choice purpose-crafted to serve drilling, digging, grabbing, bull-dozing, ditch-cleaning, small excavations, rock-breaking, landscaping, and construction purposes.
3. Compact Yet robust
- Brings an EPA certified Japanese Kubota D1105 (25HP). For smooth functionality.A vertical, water cooled 4-cycle diesel engine, Kubota D1105 packs a power of 25 HP at 3000 RPM and 19 HP at 2200 RPM. It is a 3-cylinder, indirect injection diesel engine with
- The hydraulic system adopts an Italian HANSA closed-loop system. Withstands intensive building projects without sacrificing performance.
4. Premium Components
- Provides premium components such as IMPRO motor, Taifeng plunger pump, and Lufthansa handle joystick system.
- Operation is carried out via a mixture of pilot control and mechanical control. Pilot Control on This left control handle is used for the overall movement of the machine while the mechanical control handle on the right is for operating the arm.
5. Operator Comfort
- This operator’s position is outfitted with Foam Padding for added comfort. This hood is fitted with Gas Spring Struts so that the machine is better suited to brace for impacts.
6. Ingenious Design
- This STOMP X1300 is outfitted with Piston Pump, which helps enable an effective hydraulic flow rate throughout the machine. Out of the three pumps, the two in front are used for controlling overall machine movement, while the one at the back is used for controlling actions (such as the arm and auxiliary equipment).
- Meanwhile, two of This three valves are for controlling the left and right side drive motors. The third valve is under the mechanical control lever, which controls the actions (of the arm, hydraulic cylinders, and auxiliary equipment).
- This hydraulic oil radiator is placed separate from This engine compartment, so the hydraulic oil temperature is not affected by the heat generated by the engine.
