Description

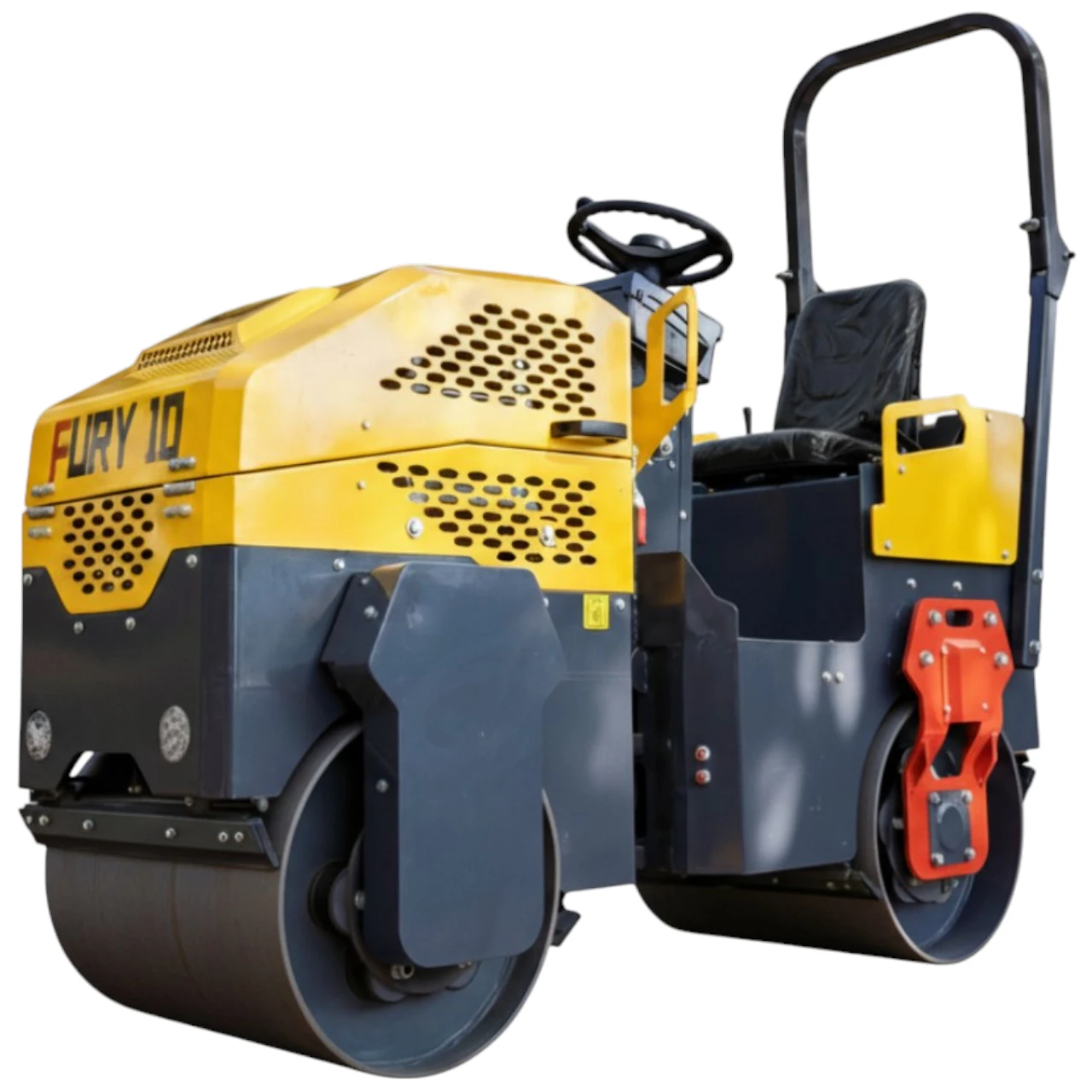

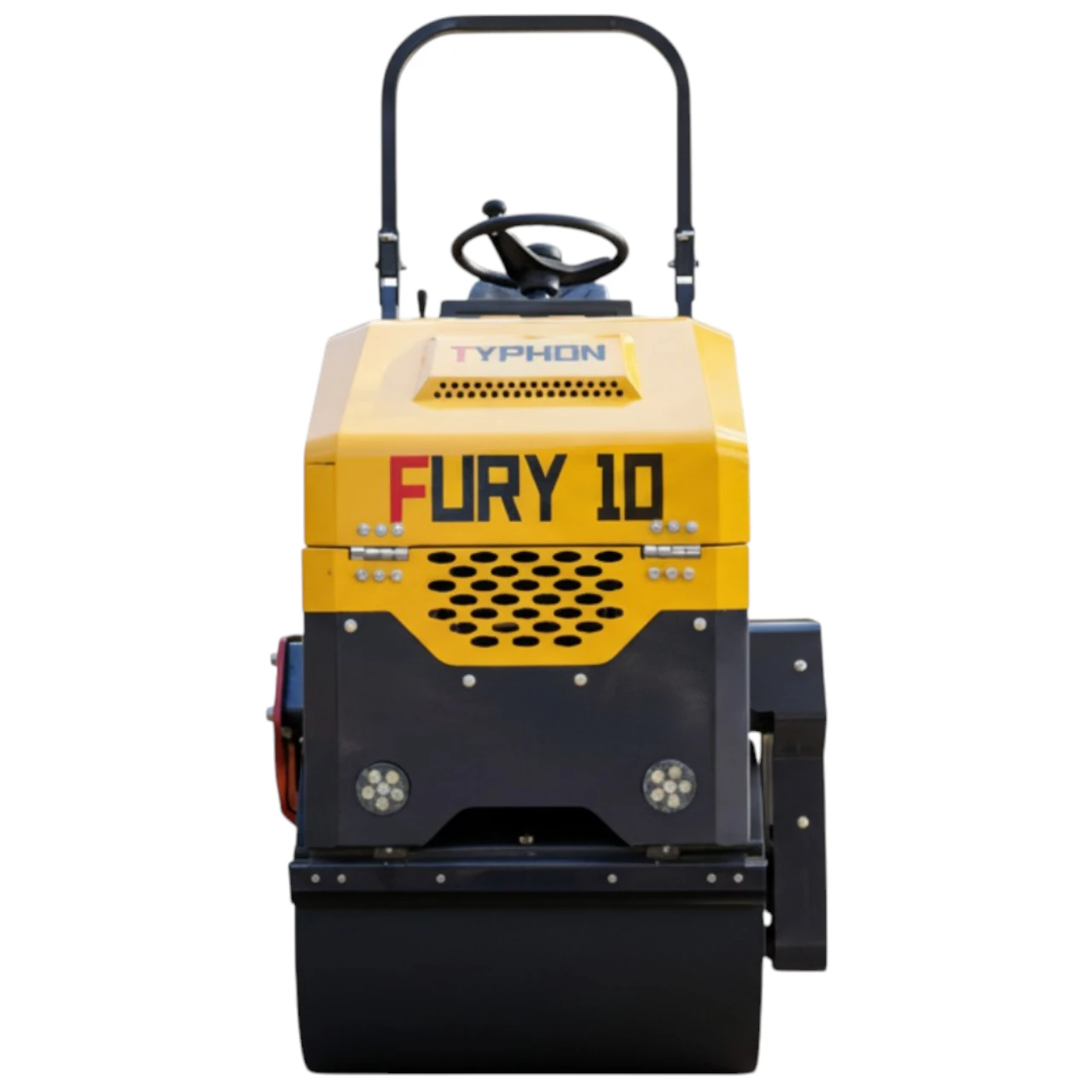

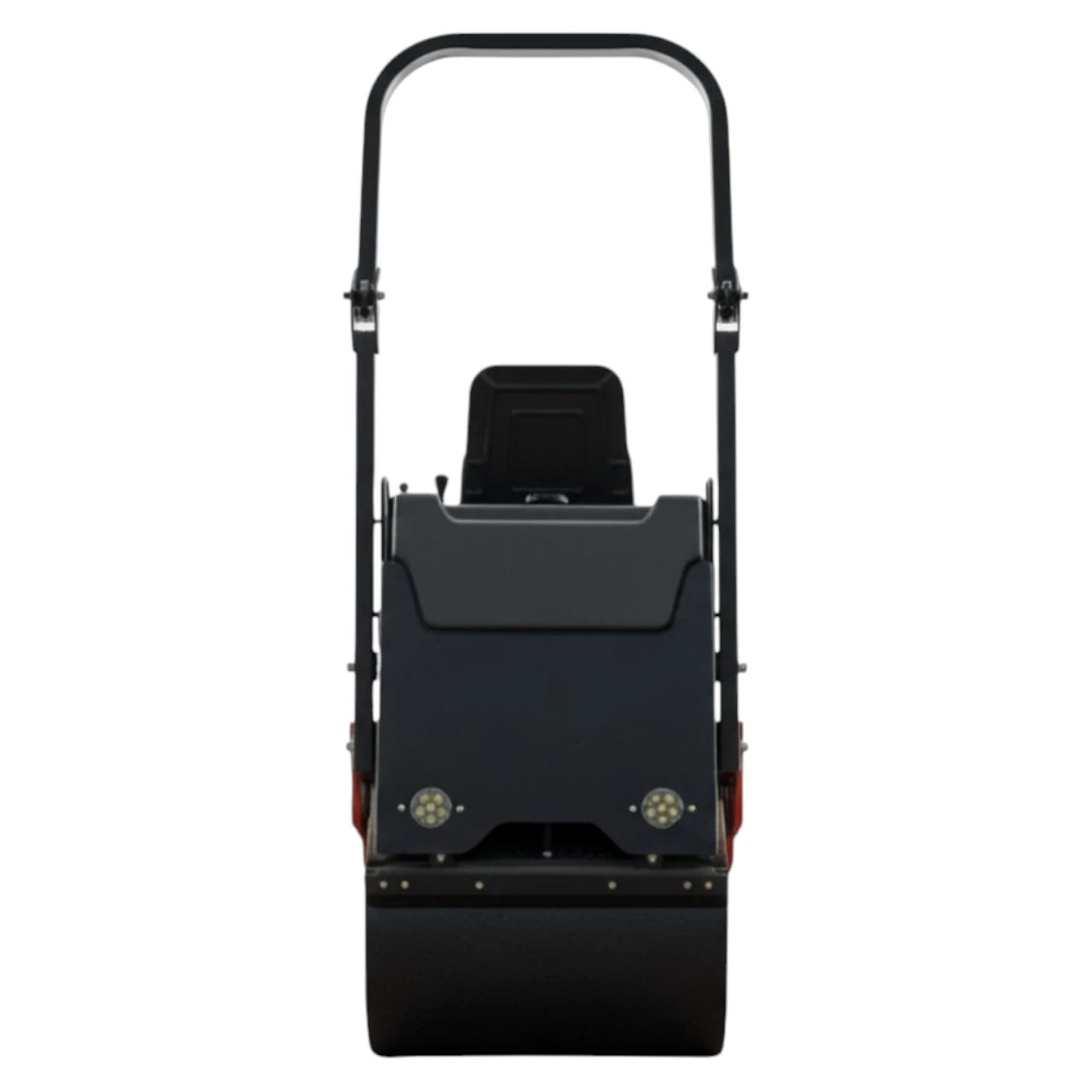

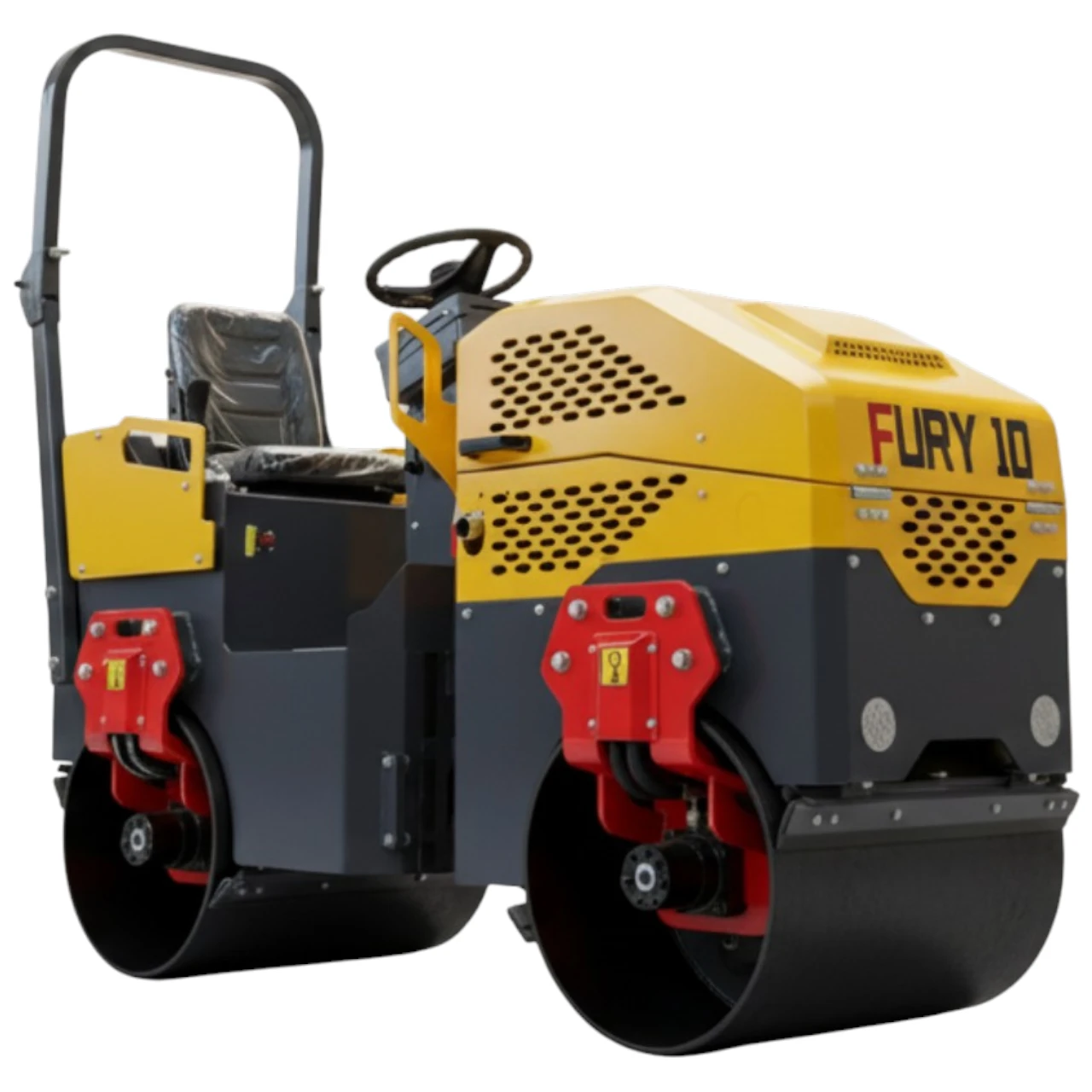

The TYPHON Fury 10 road roller produces consistent and productive compaction on asphalt, soil, and gravel. It includes a 2,200 lb operating weight, delivering the perfect balance of power and maneuverability for small-to-medium jobs, built to support road construction, paving, and landscaping, its compact footprint allows steady use through limited-access spaces while maintaining durable stability. Driven by a durable hydraulic drive and advanced vibration system, it cuts required passes and boosts productivity. High climbing ability and articulated steering helps maintain safe, accurate control on uneven terrain. Operator-friendly controls and an electronic pressure spray system complete this professional compaction solution.

TYPHON Fury 10 Key Comes configured with:

1. Wide Applications:

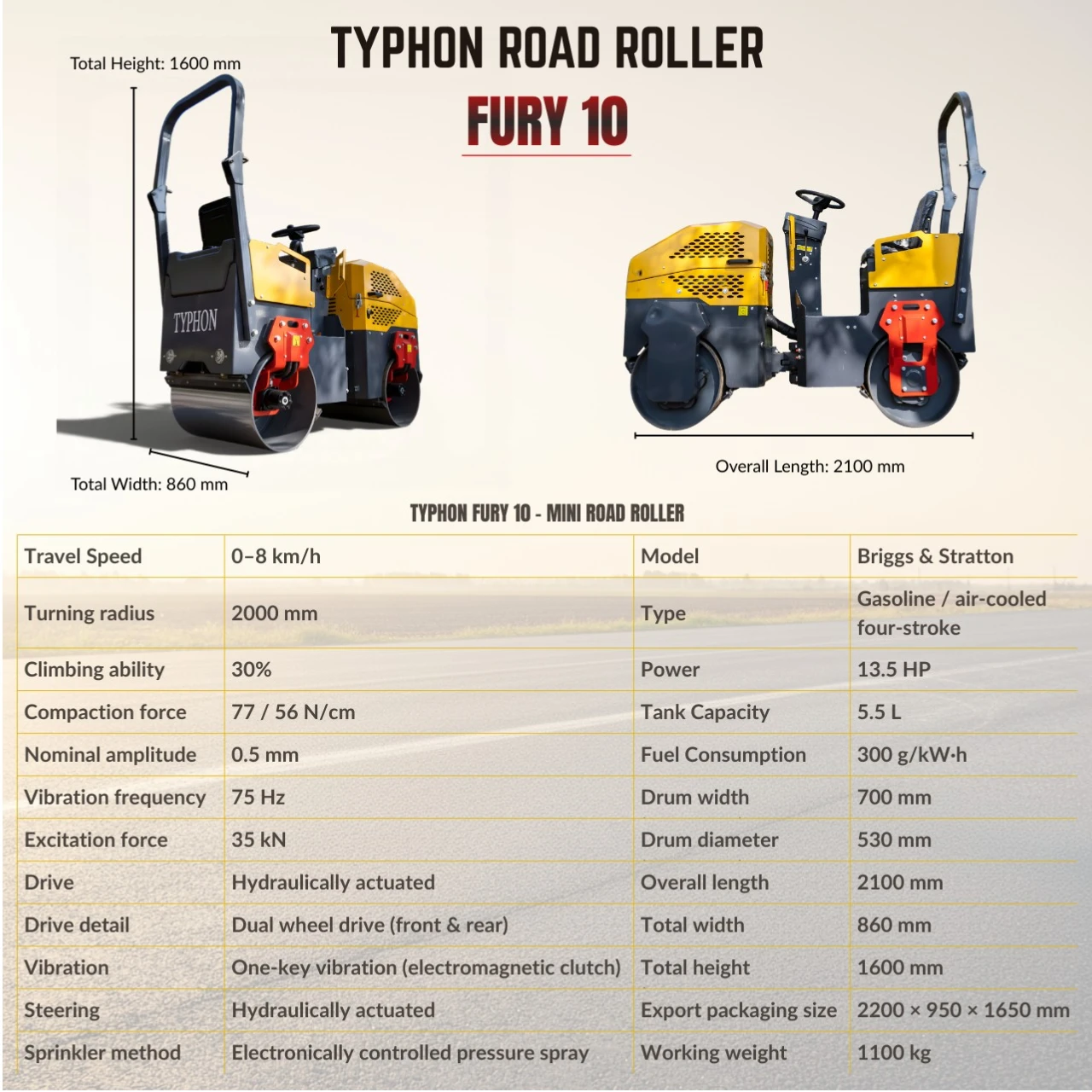

Built to support adaptable compaction work, this unit is well matched to roads, highways, driveways, parking lots, and construction sites. Its compact size makes possible straightforward use in tight areas while maintaining stable and productive capability. With an overall length of 6.89 ft, width of 33.9 in, and height of 63 in (excluding impact beam), it is simple to transport and maneuver. The 27.6 in front and rear drum width and 20.9 in drum diameter assist keep uniform compaction and smooth surface finishing.

2. Effective Compaction:

Purpose-made for consistent capability, this unit produces smooth and even compaction on asphalt, soil, and gravel. With a 30% climbing ability, it keeps durable traction on slopes and uneven terrain. The 0 in nominal amplitude, 75 Hz vibration frequency, and 7,868 lbf excitation force work together to assist keep deep, consistent compaction. A one-key vibration system with electromagnetic clutch allows quick engagement and accurate control, improving productivity while reducing operator fatigue.

3. Refined compact Strength:

TYPHON Fury 10 With a 2,200 lb operating weight and driven by a Briggs & Stratton 13.5 HP gasoline engine, this air-cooled, four-stroke model produces consistent capability with excellent fuel productivity. It includes an operating speed of 0–4.97 MPH for accurate control and a tight 7.9 in turning radius for steady use in compact operating areas. Fitted with a 1.45 gal fuel tank and a fuel consumption rate of 0.493 lb/HP-hr, it helps enable extended working hours with minimal downtime.

4. Operator-friendly Controls:

Created for safe, accurate, and operator-friendly use, this unit includes a fully hydraulically actuated drive system with dual-wheel drive on both front and rear wheels for stable traction and smooth control. Hydraulically actuated veer steering assists keep accurate maneuvering in restricted work zones, while the electronically controlled pressure spray water sprinkler system enhances moisture control and compaction quality. One-key vibration with an electromagnetic clutch front drum vibration for uniform surface compaction, and the comfortable ergonomic operator chair cuts fatigue during long working hours.

FURY 10 – output Highlights:

• Compaction & Force: produces a 7,868 lbf excitation force and 75 Hz frequency via hydraulic vibration, with a 0 in amplitude for smooth results on asphalt, soil, and gravel.
• Power & Build: A 2,200 lb sturdy frame driven by a 13.5 HP Briggs & Stratton engine, providing 0–4.97 MPH speed range and an productive 0.493 lb/HP-hr fuel rate with a 1.45 gal tank.
• Precision Control: Fitted using hydraulic actuated and an electronically controlled pressure water spray system for accurate, safe, and intuitive use.
• Gradability: Tackles inclines with a robust 30% climbing ability, making it well matched to sloped driveways and uneven construction sites.
• Frequency & Force: Operates at a high 75 Hz vibration frequency with a high-output 7,868 lbf excitation force, helping keep deep and uniform material stabilization.
